The Vertical Owlstone Vapor Generator (V-OVG) is designed to be compatible with both permeation tubes and diffusion tubes. But what exactly are permeation and diffusion tubes? This at-a-glance guide will help to make that clear.

Permeation Tubes

A permeation tube is a sealed cylinder of a permeable material (such as PTFE) with an analyte of interest inside. The analyte will very slowly permeate through the walls of the tube, at a rate governed by temperature and tube geometry.

Permeation Tube Schematic Permeation Tube

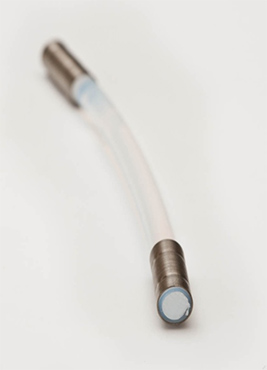

Permeation tube schematic Permeation tube

Diffusion Tubes

A diffusion tube is a container with an opening at the top (which may be covered with a permeable membrane). Gas evaporates from a reservoir of sample at the bottom of the tube, and diffuses upwards at a rate governed by temperature, pressure and tube geometry.

diff-tube-schematic diff-tube
Diffusion tube schematic Diffusion tube

Performance Comparison

Permeation Tubes Diffusion Tubes
Come ready-made to load into OVG-4 and V-OVG Can be used with the V-OVG
Some compounds cannot be made into permeation tubes Any substance with a sufficiently high vapor pressure can be used
Can produce very low concentrations (ppm to ppb) Can produce higher concentrations
